ECG Machine

• Accuracy
• High-fidelity signal acquisition

• Battery Life
• Not applicable (passive device)

• Channels
• Other, 5 Leads, single channel at a time (for cable)

• Color
• White / Grey with coded connectors

• Condition
• New

• Dimension (L*W*H)
• Cable length approx. 1 m

• Filters
• RF/EMI filter in-line (if available)

• Frequency
• 0.05 Hz to 150 Hz

• Gain
• Depends on ECG device

• Inter-Channel Interference
• Negligible, shielded construction

• Lead Acquisition
• 5-lead acquisition (RA, LA, RL, LL, V)

• Material
• TPU coated copper wire, ABS connectors

• Noise Level
• <20 V

• Operating Mode
• Other, Continuous monitoring

• Paper Type
• Not applicable (used with ECG machines)

• Portable
• Yes

• Power Source
• Other, Not required, passive cable

• Real-Time Operation
• Other, Yes, with real-time monitoring through ECG machine

• Record Format
• Depends on ECG machine

• Recording Mode
• Continuous (with device)

• Recording Time
• Depends on ECG machine

• Resolution
• Depends on ECG device

• Sample Rate
• Depends on ECG device

• Screen
• Other, Not applicable (no display on cable)

• Sensitivity
• 10 V

• Technology
• Other, Shielded, multi-strand, low noise design

• Type

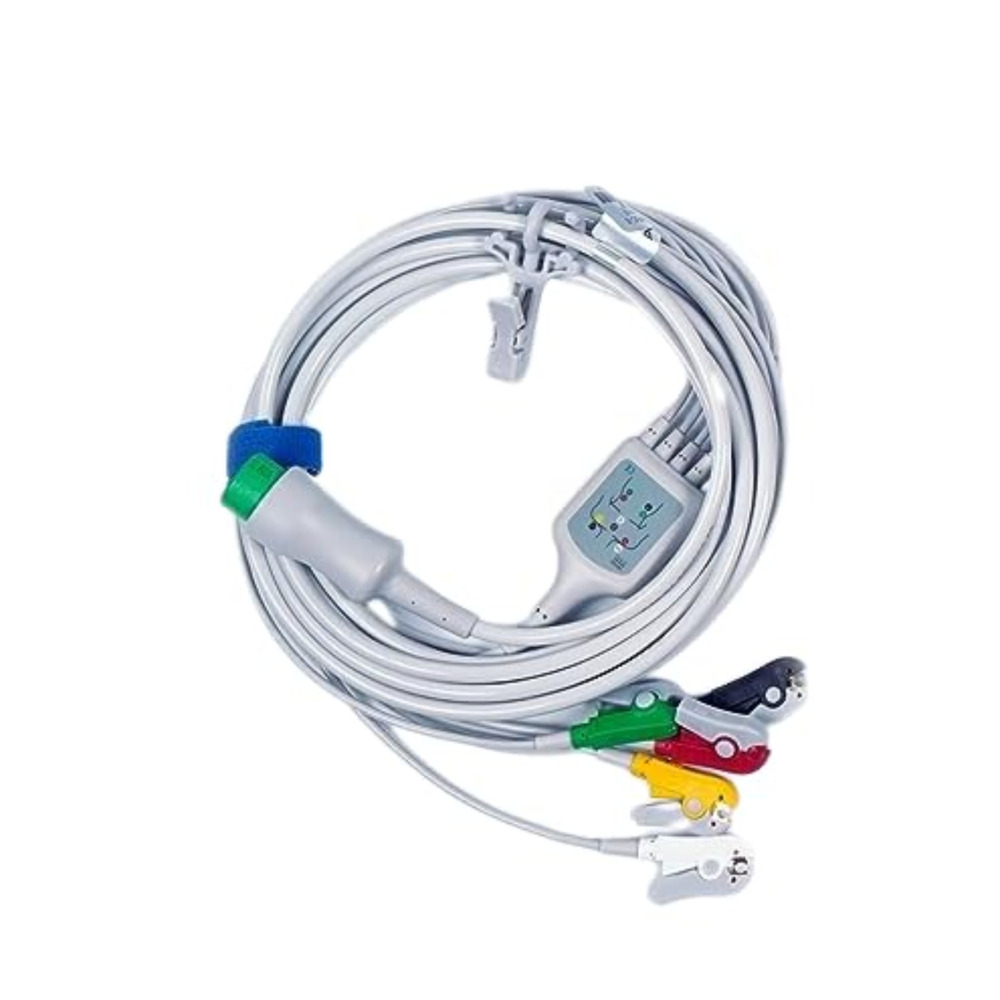

• Other, 5 Lead ECG Cable

• Use
• For connecting patient to ECG machine for diagnostic monitoring

• Weight
• Approx. 120g

• Accuracy
• 1% (Standard Leads)

• Battery Life
• Up to 6 hours (continuous operation with rechargeable lithium battery)

• Channels
• Other, 3 channel simultaneous print (12 lead acquisition)

• Color
• White / Grey

• Condition
• New

• Dimension (L*W*H)
• 315 x 215 x 77 mm

• Download Interface
• USB and RS232 ports

• Filters
• AC, baseline drift, muscle tremor

• Frequency
• 0.05 Hz 150 Hz

• Gain
• 2.5, 5, 10, 20 mm/mV selectable

• Inter-Channel Interference
• <0.2 mV

• Internal Memory
• At least 100 ECG records

• Lead Acquisition
• 12-lead simultaneous acquisition

• Material
• ABS plastic body, medical grade

• Noise Level
• <15 Vp-p

• Operating Mode
• Other, Auto / Manual / Rhythm

• Paper Type
• Thermal sensitive paper, 80 mm width

• Portable
• Yes

• Power Consumption
• <30 VA

• Power Source
• Other, AC 100240V, 50/60Hz; Rechargeable battery

• Real-Time Operation
• Other, Yes, prints and displays in real-time

• Record Format
• PDF, JPEG, SCP

• Recording Mode
• Automatic, Manual, Arrhythmia

• Recording Time
• Selectable: 10, 20, 30, 60 seconds

• Resolution
• 12 bit A/D conversion

• Sample Rate
• 1000 samples/sec

• Screen
• Other, LCD, 3.5 inch

• Sensitivity
• 10 mm/mV (standard), adjustable

• Speed
• 25 mm/s, 50 mm/s selectable

• Technology
• Other, Microprocessor-based digital ECG

• Type
• Other, Electrocardiograph (ECG) Machine

• Use
• Hospital, Clinic, Cardiology diagnostic

• Voltage
• 100-240V AC

• Weight
• Approx. 2 kg

• Accuracy
• 99%

• Battery Life
• 72 hours

• Channels
• Other, 3/12 Channel

• Color
• White/Grey

• Condition
• New

• Dimension (L*W*H)
• 88 mm 60 mm 22 mm

• Download Interface
• USB 2.0

• Filters
• Digital Filter, Baseline, EMG, AC

• Frequency
• 0.0560 Hz

• Gain
• 5/10/20 mm/mV

• Inter-Channel Interference
• <1%

• Internal Memory
• SD Card (up to 32 GB)

• Lead Acquisition
• 3-channel/12-lead

• Material
• ABS Plastic

• Noise Level
• <30 V

• Operating Mode
• Other, Continuous/Intermittent

• Paper Type
• Digital Storage (no paper required)

• Portable
• Yes

• Power Consumption
• <0.2 W

• Power Source
• Other, AA Rechargeable Battery

• Real-Time Operation
• Yes

• Record Format
• .ECG, .SCP, .PDF

• Recording Mode
• Manual/Auto

• Recording Time
• 24-96 hours

• Resolution
• 12-bit

• Sample Rate
• 128-1024 Hz

• Screen
• Other, 1.77 TFT

• Sensitivity
• 10 V

• Speed
• 25 mm/s (Digital Equivalent)

• Technology
• Other, Digital Recording

• Type
• Other, Digital ECG Holter

• Use
• Ambulatory ECG Monitoring

• Voltage
• DC 3V

• Weight
• 100 g

• Accuracy
• 99.9%

• Battery Life
• 24 - 48 Hours

• Channels
• Other, 3 Channels / 12 Channels (Model Dependent)

• Color
• White/Grey

• Condition
• New

• Dimension (L*W*H)
• 90 mm x 60 mm x 22 mm

• Download Interface
• USB 2.0

• Filters
• High Pass, Low Pass, AC Filter

• Frequency
• 0.05 Hz - 60 Hz

• Gain
• Adjustment 5, 10, 20 mm/mV

• Inter-Channel Interference
• <1%

• Internal Memory
• 128 MB

• Lead Acquisition
• 3-Channel or 12-lead

• Material
• ABS Plastic

• Noise Level
• <30 V

• Operating Mode
• Other, Continuous Recording

• Paper Type
• Not Applicable (Digital Storage)

• Portable
• Yes

• Power Consumption
• <0.5W

• Power Source
• Other, Rechargeable Li-ion Battery

• Real-Time Operation
• Yes

• Record Format
• Digital, Standard Holter Format

• Recording Mode
• Continuous/Intermittent

• Recording Time
• Up to 48 Hours

• Resolution
• 128 x 64 pixels (Screen)

• Sample Rate
• 1024 Hz

• Screen
• Other, OLED Display

• Sensitivity
• 10 V/mm

• Speed
• 25 mm/s (Display/Print)

• Technology
• Other, Digital Holter

• Type
• Other, Portable ECG Holter

• Use
• Ambulatory ECG Monitoring

• Voltage
• DC 3.7V

• Weight
• 65 g

• Accuracy
• 2% or 1V, whichever is greater

• Battery Life
• Rechargeable battery with up to 4 hours continuous operation

• Channels
• Other, 3 Channel ECG

• Color
• White & Blue

• Condition
• New

• Dimension (L*W*H)
• 300 mm x 230 mm x 76 mm

• Download Interface
• USB, SD Card

• Filters
• Baseline, AC, EMG, DFT

• Frequency
• 0.05150 Hz

• Gain
• 2.5, 5, 10, 20 mm/mV selectable

• Inter-Channel Interference
• <1% (500 Hz, 2 mV, 200 )

• Internal Memory
• Stores up to 100 ECG recordings

• Lead Acquisition
• 12-lead simultaneous acquisition

• Material
• ABS Plastic

• Noise Level
• <15 Vp-p

• Operating Mode
• Other, Auto/Manual/Arrhythmia detection

• Paper Type
• Thermal paper, 80 mm width

• Portable
• Yes

• Power Consumption
• 20 VA

• Power Source
• Other, AC 100-240 V, 50/60 Hz

• Real-Time Operation
• Other, Yes, offers real-time waveform display

• Record Format
• PDF, DICOM

• Recording Mode
• Continuous / Simultaneous

• Recording Time
• Up to 10 minutes continuous recording

• Resolution
• 128 64 pixels LCD display

• Sample Rate
• 1000 samples/sec per channel

• Screen
• Other, High-contrast backlit LCD

• Sensitivity
• Adjustable

• Speed
• 25 mm/s, 50 mm/s selectable

• Technology
• Other, Digital ECG recording

• Type
• Other, Portable ECG Machine

• Use
• Clinical, Hospital, Emergency

• Voltage
• 220 V

• Weight
• Approx. 2.5 kg

• Accuracy
• 1%

• Battery Life
• Rechargeable battery, up to 3 hours continuous operation

• Channels
• Other, 3

• Color
• White

• Condition
• New

• Dimension (L*W*H)
• 305 x 230 x 90 mm

• Download Interface
• USB / SD Card

• Filters
• AC, Muscle, Baseline Drift

• Frequency
• 0.05 Hz 150 Hz

• Gain
• 2.5, 5, 10, 20 mm/mV selectable

• Inter-Channel Interference
• <1%

• Internal Memory
• Up to 1000 ECGs

• Lead Acquisition
• Standard 12-lead

• Material
• ABS body

• Noise Level
• < 20 Vpp (baseline)

• Operating Mode
• Other, Manual / Auto

• Paper Type
• Thermal roll, 50 mm width

• Portable
• Yes

• Power Consumption
• <30VA

• Power Source
• Other, AC 100V-240V, 50/60Hz; Rechargeable battery

• Real-Time Operation
• Other, Available

• Record Format
• Standard format, PDF Export

• Recording Mode
• Manual/Auto/Arrhythmia

• Recording Time
• Auto, Manual, Arrhythmia

• Resolution
• 8 dots/mm

• Sample Rate
• 1000 Samples/Sec/Channel

• Screen
• Other, 3.5 LCD display

• Sensitivity
• Standard 10 mm/mV

• Speed
• 25 mm/s, 50 mm/s selectable

• Technology
• Other, Digital, Microprocessor controlled

• Type
• Other, 3 Channel ECG Machine

• Use
• Hospital, Clinic, Diagnostic Centre

• Voltage
• 100-240 V AC

• Weight
• Approx. 2.2 kg

• Accuracy
• 5%

• Battery Life
• More than 3 hours continuous operation

• Channels
• Other, 6-Channel

• Color
• White & Blue

• Condition
• New

• Dimension (L*W*H)
• 300 x 230 x 70 mm

• Download Interface
• USB, SD Card

• Filters
• AC, EMG, Baseline Drift

• Frequency
• 0.05 150 Hz

• Gain
• 2.5, 5, 10, 20 mm/mV selectable

• Inter-Channel Interference
• <0.2mm

• Internal Memory
• Up to 100 patient records

• Lead Acquisition
• Simultaneous, Standard 12-lead acquisition

• Material
• ABS plastic housing

• Noise Level
• 20V (peak-to-peak)

• Operating Mode
• Other, Auto/Manual/Rhythm

• Paper Type
• Z-fold, 50mm or 63mm thermal paper

• Portable
• Yes

• Power Consumption
• <30VA

• Power Source
• Other, AC adapter / Built-in rechargeable battery

• Real-Time Operation
• Other, Yes, with real-time waveform display

• Record Format
• PDF, JPEG, standard SCP

• Recording Mode
• Automatic/Manual/Rhythm/Arrhythmia analysis

• Recording Time
• Continuous, up to memory limit

• Resolution
• 800x480 pixels (for LCD Screen)

• Sample Rate
• 1000 Hz

• Screen
• Other, 4.3 inch color LCD display

• Sensitivity
• Adjustable

• Speed
• 25 mm/s, 50 mm/s selectable

• Technology
• Other, Microprocessor based digital acquisition

• Type
• Other, ECG Machine

• Use
• Clinical and hospital ECG monitoring

• Voltage
• AC 100240V, 50/60Hz

• Weight
• Approx. 2.3 kg
